DDPAI Z50 4K UHD Front & Rear Dash Cam with GPS and NightVIS

Dual-Channel Driving Protection with 4K Resolution

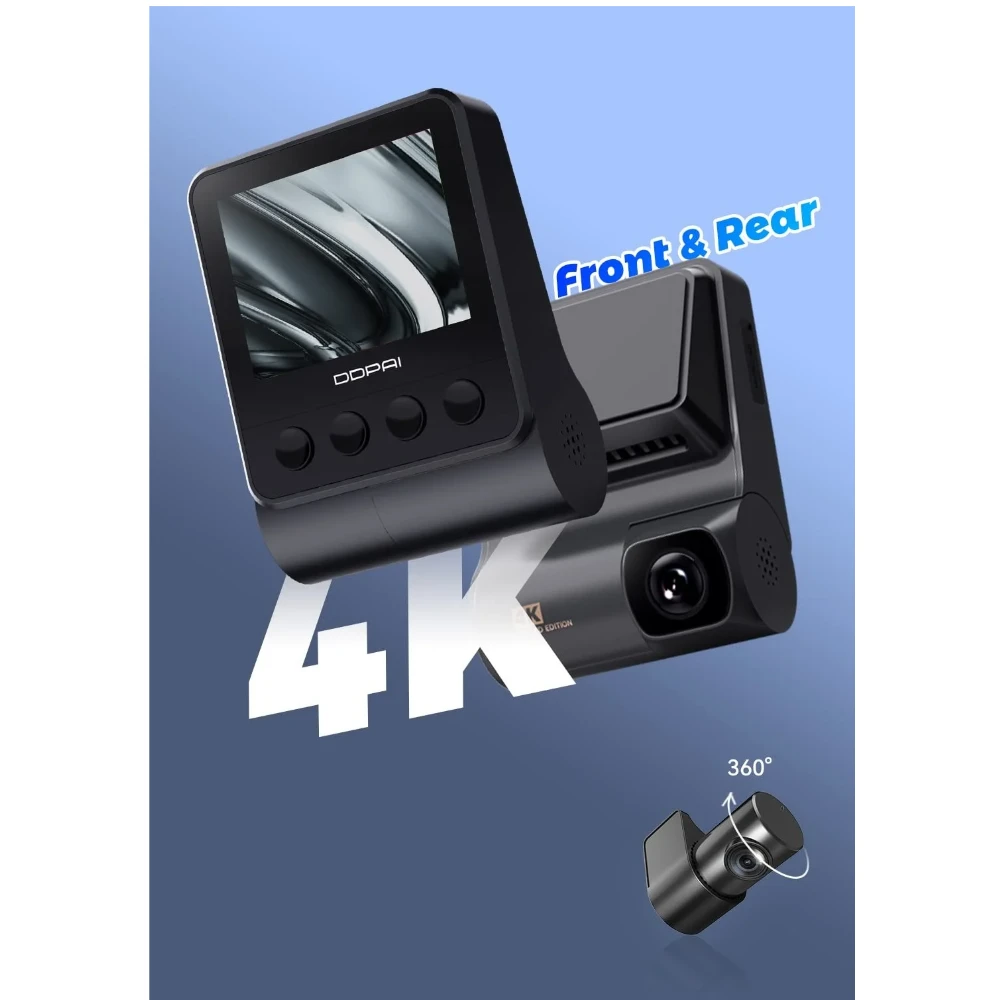

The DDPAI Z50 is a sophisticated dual-channel dash camera system designed to provide comprehensive visual evidence of your daily commutes and long-distance road trips. By recording simultaneously from the front and rear of the vehicle, this system addresses the critical need for documented proof in the event of traffic incidents, insurance disputes, or unexpected road events. The front camera captures footage in native 4K UHD, ensuring that fine details like license plates and road signs are legible even at high speeds or from a distance.

Equipped with a Sony IMX415 image sensor and advanced processing technologies, the Z50 is built to handle challenging lighting conditions, such as driving directly into the sun or navigating poorly lit rural roads at night. It serves as a reliable silent witness, operating automatically every time you start your engine. For drivers seeking extra security while away from their vehicle, the system supports 24-hour parking monitoring when paired with the necessary hardware, providing a deterrent against hit-and-runs or vandalism.

Key Product Information

• Brand: DDPAI
• Model: Z50
• Recording Channels: Dual (Front and Rear)
• Main Sensor: Sony IMX415 (8MP)
• Display: 2.3-inch IPS Screen
• Storage Support: MicroSD up to 512GB (Region dependent)
• Power Source: Built-in Supercapacitor

High-Performance Visual Technology

The DDPAI Z50 utilizes the Sony IMX415 sensor to deliver true 3840 × 2160P resolution. Unlike upscaled 4K, this provides genuine pixel density for sharp video quality. To further enhance the visual output, the camera integrates two proprietary technologies:

• NightVIS Technology: Improves low-light performance by optimizing the sensor's sensitivity, reducing noise in dark environments and ensuring night-time footage remains clear.
• Realcube Image Technology: Features built-in adaptive algorithms that adjust color balance and brightness. This results in more vivid, natural-looking videos that accurately represent the scene as you saw it.

Reliable Storage and Data Security

One of the most significant risks with any dash camera is memory card failure. The DDPAI Z50 mitigates this risk with its D²save emergency storage technology. If the system detects a write error on the microSD card, it automatically switches to built-in NAND flash storage to save the current recording. Once a functional card is detected, the system transfers the data back, ensuring that critical moments are never lost due to hardware malfunctions.

Technical Specifications

Advanced Driver Assistance and Safety Features

Beyond simple recording, the Z50 includes features designed to assist the driver and protect the vehicle:

• ADAS Front Vehicle Start Alert: Using the camera's vision system, the Z50 can detect when the vehicle in front of you has started moving and provides a voice alert. Note: This feature requires the front resolution to be set to 1600P or lower for processing efficiency.
• G-Sensor Emergency Lock: The built-in 3-axis gravity sensor detects sudden impacts or emergency braking. When triggered, the camera automatically locks the current video file in a protected folder to prevent it from being overwritten during loop recording.
• Supercapacitor Power: Unlike lithium batteries, the supercapacitor is highly resistant to extreme heat and cold, reducing the risk of overheating and extending the lifespan of the device.

Package Contents

• 1 x DDPAI Z50 Dash Camera (Front)
• 1 x RC1 Rear Camera
• 1 x Dual USB Car Charger
• 1 x Power Cable (Front)
• 1 x Power Cable (Rear)
• 1 x Installation Tool (Pry bar)
• 2 x Electrostatic Stickers
• 3M Adhesive Pads
• User Manuals

Compatibility and Requirements

To ensure full functionality, please observe the following requirements:

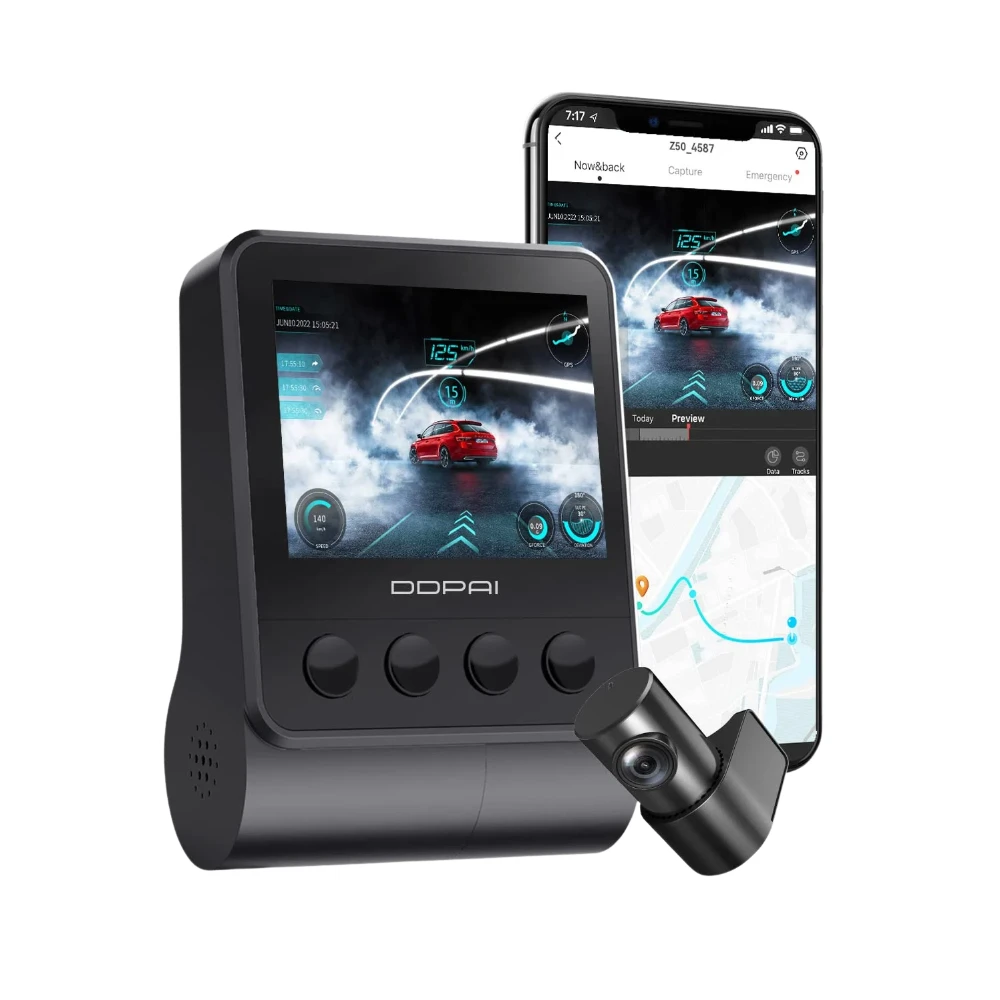

• Mobile Application: Requires the DDPAI App, available on the Google Play Store and Apple App Store for video preview, playback, and settings management.
• Memory Card: A high-quality microSD card is required. While the Philippines specification supports up to 512GB, ensure your card is rated Class 10 / U3 for 4K video writing speeds.
• Parking Monitoring: To use the 24-hour parking mode, a DDPAI-specific hardwire kit (sold separately) must be installed to connect the camera to the vehicle's fuse box.
• Resolution Settings: ADAS features are specifically optimized for use at 1600P resolution or below.

Frequently Asked Questions

Does the Z50 support 24-hour parking monitoring?
Yes, the Z50 supports parking monitoring, but it requires the installation of an optional DDPAI Hardwire Kit. This kit provides constant power from the vehicle battery and includes low-voltage protection to prevent battery drain.

How do I view and download my videos?
You can view footage directly on the 2.3-inch IPS screen. For high-definition playback and downloading to your phone, connect to the camera's built-in 2.4GHz Wi-Fi using the DDPAI mobile app.

What happens when the memory card is full?
The camera utilizes loop recording, which means it will automatically overwrite the oldest unprotected files with new footage once the card reaches capacity. Emergency recordings locked by the G-sensor will not be overwritten.

Is the rear camera waterproof?
The RC1 rear camera included in this package is designed for internal mounting on the rear windshield. It is not intended for external mounting.

What is the benefit of the Sony IMX415 sensor?
The IMX415 is a high-grade image sensor that allows for native 4K capture. It provides better dynamic range and lower noise levels compared to standard sensors, making it ideal for capturing clear evidence in varied lighting conditions.
