DDPAI Ranger 4K Riding Camera Set with Mount and Charging Base

High-Definition Recording for Cyclists and Motorcyclists

The DDPAI Ranger 4K Riding Camera is a specialized imaging solution built specifically for the demands of two-wheeled travel. Unlike traditional action cameras or automotive dashcams, the Ranger is engineered to balance high-fidelity video capture with comprehensive telemetry data. It addresses the common need for a durable, vibration-resistant camera that can document long rides while providing technical insights into riding performance such as speed, lean angle, and altitude.

Equipped with a native 4K UHD sensor and integrated GPS, this camera serves as both a safety witness and a performance tracker. It eliminates the need for separate bike computers and recording devices by consolidating visual evidence and data logs into a single, weather-sealed unit. Whether navigating urban traffic on a motorcycle or exploring mountain trails on a bicycle, the Ranger provides a reliable record of the journey with professional-grade stabilization.

This specific set includes the Ranger camera body along with a dedicated mount and a charging base. This configuration is intended for riders who require extended recording times beyond the internal battery capacity, as the charging base allows for continuous power supply during operation, making it suitable for touring and long-distance endurance riding.

Key Product Information

• Brand: DDPAI
• Model: Ranger
• Resolution: 4K UHD (3840 × 2160) @ 30fps
• Storage: 128GB built-in eMMC (No SD card required)

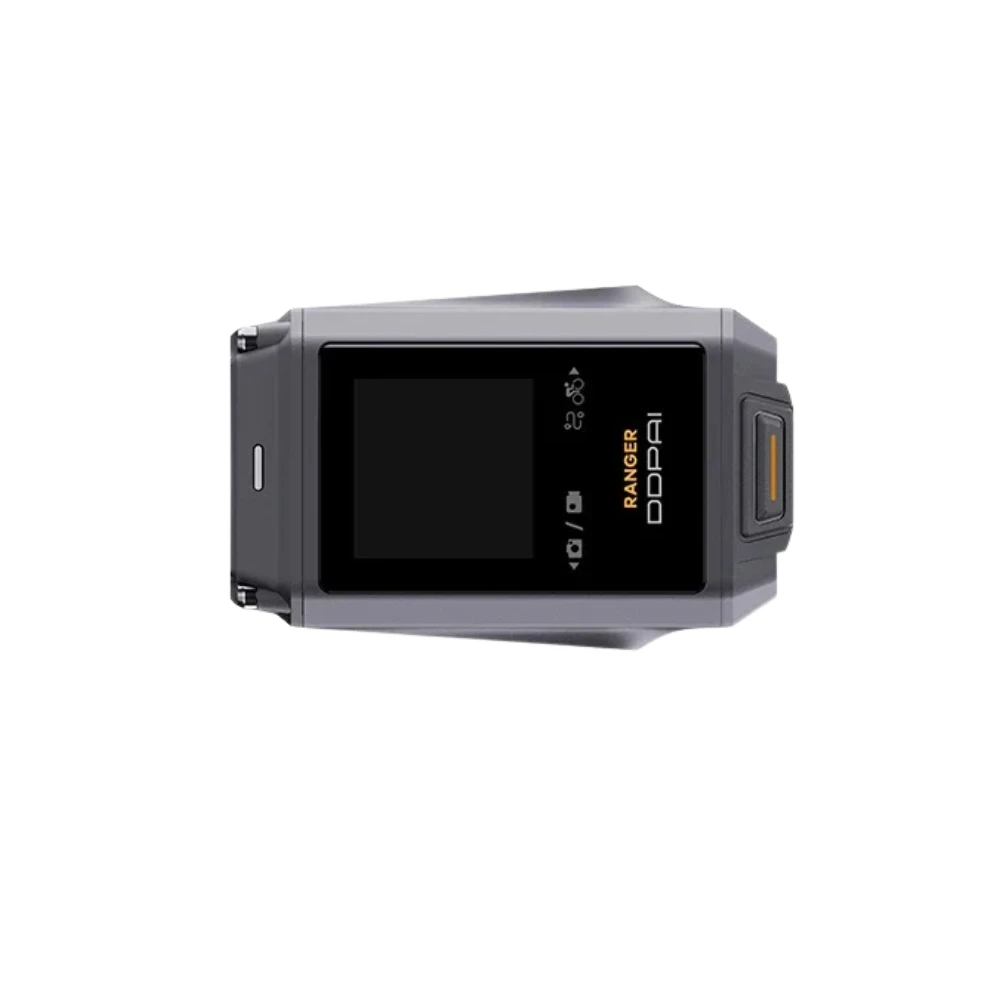

• Display: 1.3-inch high-brightness touchscreen (700 nits)
• Connectivity: 5GHz Wi-Fi and Bluetooth (BLE 5.1/5.0)
• Durability: IP67 dust and water resistance

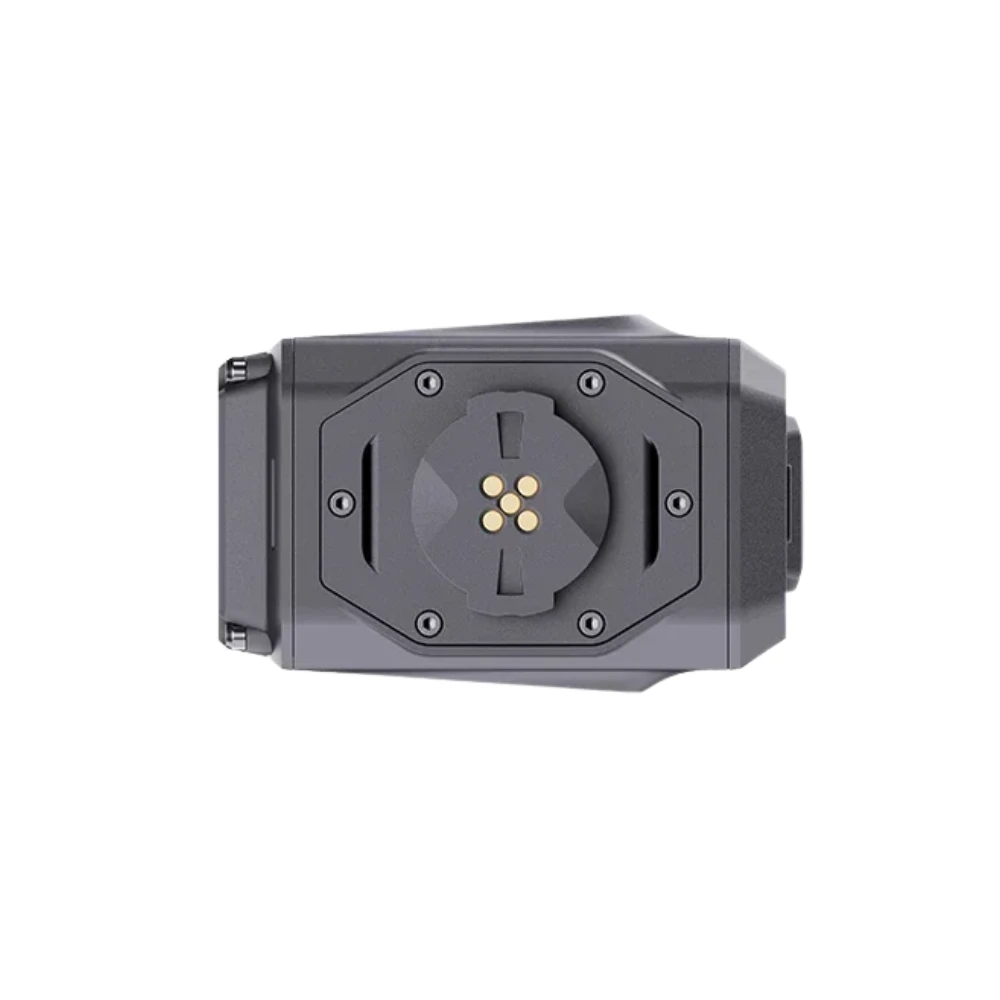

• Mounting: Quick-release twist-lock system

Advanced Video and Imaging Technology

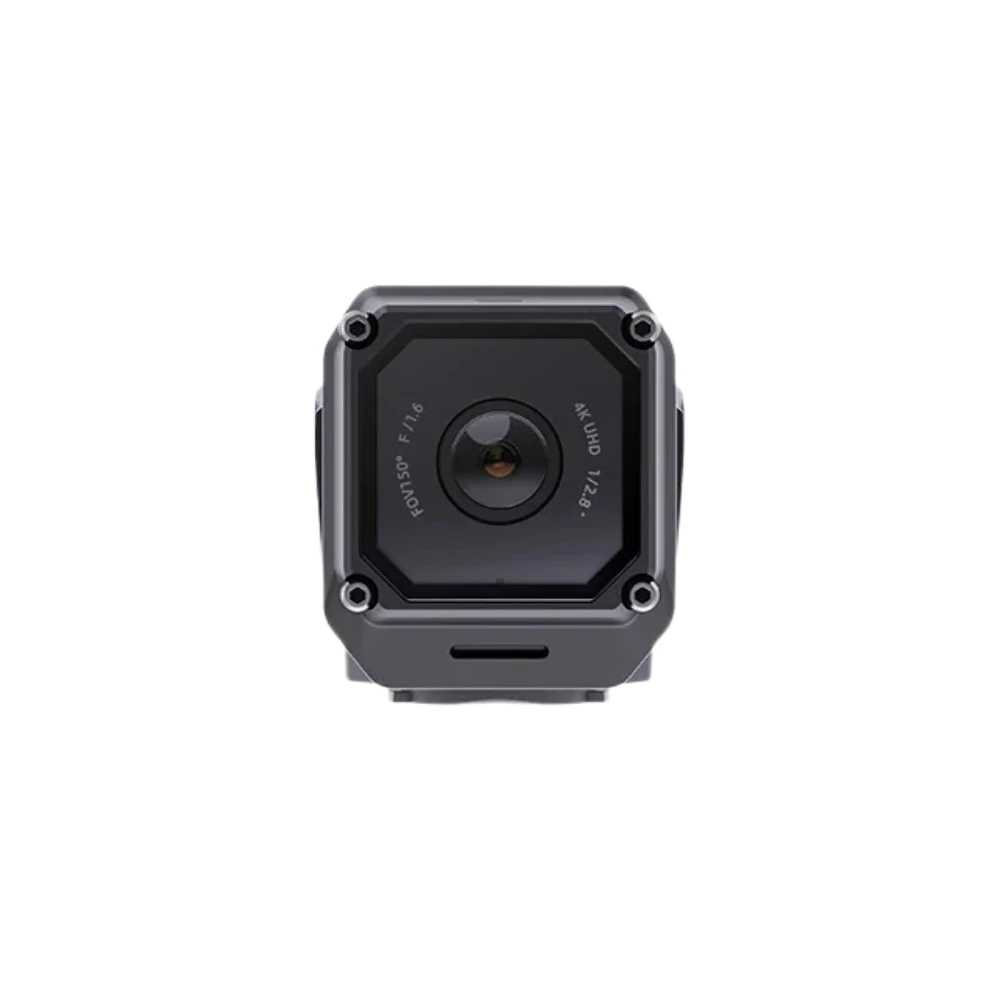

The DDPAI Ranger utilizes an AI-ISP chipset to process 4K video at 30 frames per second. The F1.6 wide-aperture lens and a 150-degree field of view ensure a broad perspective of the road or trail, capturing critical details even at the periphery. For those requiring higher frame rates, the camera supports 2K recording at 60fps, providing smoother motion playback for fast-paced action.

To combat the inevitable vibrations of cycling and motorcycling, the Ranger employs a triple-layer stabilization system. D-Flow stabilization reduces camera shake, Horizon Steady maintains a level perspective during turns, and distortion correction minimizes the 'fisheye' effect common in wide-angle lenses. The result is stable, professional-looking footage that remains clear even on uneven terrain.

Integrated Telemetry and Sense Reality (SR) 4.0

One of the defining features of the Ranger is its array of internal sensors. It contains a six-axis gyroscope, magnetometer, barometer, and GPS. These sensors work in tandem to record a wealth of riding data, including:

• Real-time speed and mileage
• Compass direction and route tracking
• Acceleration and G-force values
• Incline (slope) and left/right lean angles
• Air pressure and altitude
• Estimated calorie burn

Using the DDPAI mobile app and the Sense Reality (SR) 4.0 interface, riders can overlay this data directly onto their videos. This creates an informative dashboard view that visualizes the technical aspects of the ride, which can then be shared as 3D trajectory videos or exported as GPX files for further analysis.

Hardware Design and Storage

The Ranger is designed for the outdoors with an IP67 rating, meaning it is fully protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. The lens is constructed with 7H hardness glass to resist scratches from road debris and grit. To ensure the device remains cool during high-resolution recording, the housing features an integrated airflow cooling design.

Instead of relying on external microSD cards which can often fail due to vibration or high write speeds, the Ranger features 128GB of built-in eMMC storage. This industrial-grade internal memory offers faster data transfer speeds and significantly higher reliability for 4K video streams, ensuring that footage is saved without corruption even during intense vibrations.

Technical Specifications

Package Contents

• 1 x DDPAI Ranger Riding Camera
• 1 x Charging Base (Power Supply Base)
• 1 x Specific Camera Mount (Bicycle or Motorcycle variant)
• 1 x Two-claw Adapter
• 1 x Power Cable
• 1 x Mounting Bolt
• 1 x 3M Adhesive Pad
• 1 x User Manual & Quick Start Guide

Usage and Maintenance Instructions

To install the Ranger, attach the selected mount to your handlebars or frame. Use the twist-lock mechanism to secure the camera into place. When using the charging base for continuous power, ensure that the connection points are clean and dry. After riding in wet or dusty conditions, wipe the camera and the charging base with a soft, dry cloth. The protective cover should be used on the charging base whenever the camera is not docked to prevent environmental damage to the pins.

Compatibility Requirements

The DDPAI App is required for data visualization and advanced settings. It is compatible with iOS 11.0 or later (A11 chip or newer) and Android devices with a 64-bit architecture. Recommended Android chipsets include Snapdragon 845, Kirin 980, Exynos 9810, or Google Tensor and newer. Note that some older 5G chipsets, such as the Snapdragon 765G, may experience limited video decoding performance within the app.

Frequently Asked Questions

Do I need to buy a separate memory card?
No, the DDPAI Ranger comes with 128GB of built-in eMMC storage, which is sufficient for several hours of 4K footage and offers better stability than standard SD cards.

Can I record while the camera is charging?
Yes, when used with the included charging base and a compatible power source, the Ranger supports continuous recording, bypassing the limitations of the internal battery.

Is the camera waterproof?
The camera is rated IP67, making it highly resistant to rain and dust. However, ensure the charging port covers are securely closed when not using the charging base.

How do I see my riding data (speed, lean angle) on the video?
Download the footage to the DDPAI mobile app. The app will synthesize the GPS and sensor data to create the Sense Reality (SR) overlay on your video.

Is the lens replaceable if it gets scratched?
While the lens is highly scratch-resistant (7H hardness), DDPAI has designed the outer lens element to be replaceable in the event of significant damage.
