70mai T05 Tire pressure Monitoring System Lite 2

Smart Real-Time Tire Monitoring for Safer Driving

The 70mai T05 Tire Pressure Monitoring System (TPMS) Lite 2 is a high-precision digital safety tool designed to provide drivers with constant, real-time data regarding their vehicle's tire health. Maintaining correct tire pressure is essential for vehicle stability, fuel efficiency, and tire longevity. This system removes the guesswork by continuously measuring pressure and temperature, alerting the driver immediately if any abnormalities occur, such as a slow leak or sudden pressure drop.

Equipped with four external sensors and a compact receiver unit, the TPMS Lite 2 fits into almost any vehicle setup. By providing instant visual and audible feedback, it helps prevent dangerous blowouts and reduces the risk of accidents caused by under-inflated tires. This version features updated wireless connectivity and improved battery efficiency, ensuring that your vehicle remains monitored even during long journeys or extreme weather conditions.

Key Information

Core Features and Functionality

Dual Charging Method

The receiver unit of the 70mai T05 is designed for uninterrupted operation. It features a built-in rechargeable battery that can be powered via a standard USB cable. Additionally, the unit is equipped with a solar panel on its upper surface, allowing it to maintain charge through sunlight while sitting on your dashboard. This hybrid power system ensures the display remains active without requiring a constant wired connection in the cabin.

High-Accuracy External Sensors

The system utilizes four lightweight external sensors that replace your existing tire valve caps. These sensors are engineered to withstand harsh road conditions, including rain, dust, and mud. They are rated IP67 for water and dust resistance. Each sensor measures both pressure and temperature simultaneously, transmitting data wirelessly to the receiver unit with a precision of 0.1 bar.

LCD Display and Instant Alerts

The compact receiver features a clear LCD screen that displays the pressure of all four tires at once. The system is programmed with threshold values; if the pressure falls too low or rises too high, or if the internal temperature of the tire exceeds safety limits, the device will trigger a buzzer and flash the corresponding tire icon on the screen. This immediate feedback allows the driver to pull over and address the issue before it becomes critical.

App Integration via 70mai App

Unlike basic TPMS units, the T05 Lite 2 connects to the 70mai mobile application via Bluetooth. Through the app, users can customize alarm thresholds for both pressure and temperature to suit specific vehicle requirements. The app also provides a history of tire performance and allows for easy sensor binding if a replacement is ever needed.

Specifications

• Operating Voltage: 5V (USB input)
• Working Temperature: -20°C to 70°C
• Sensor Battery Life: Approximately 2 years (user replaceable)
• Pressure Accuracy: ±0.1 bar / ±1.5 psi
• Temperature Accuracy: ±3°C
• Wireless Frequency: 433 MHz

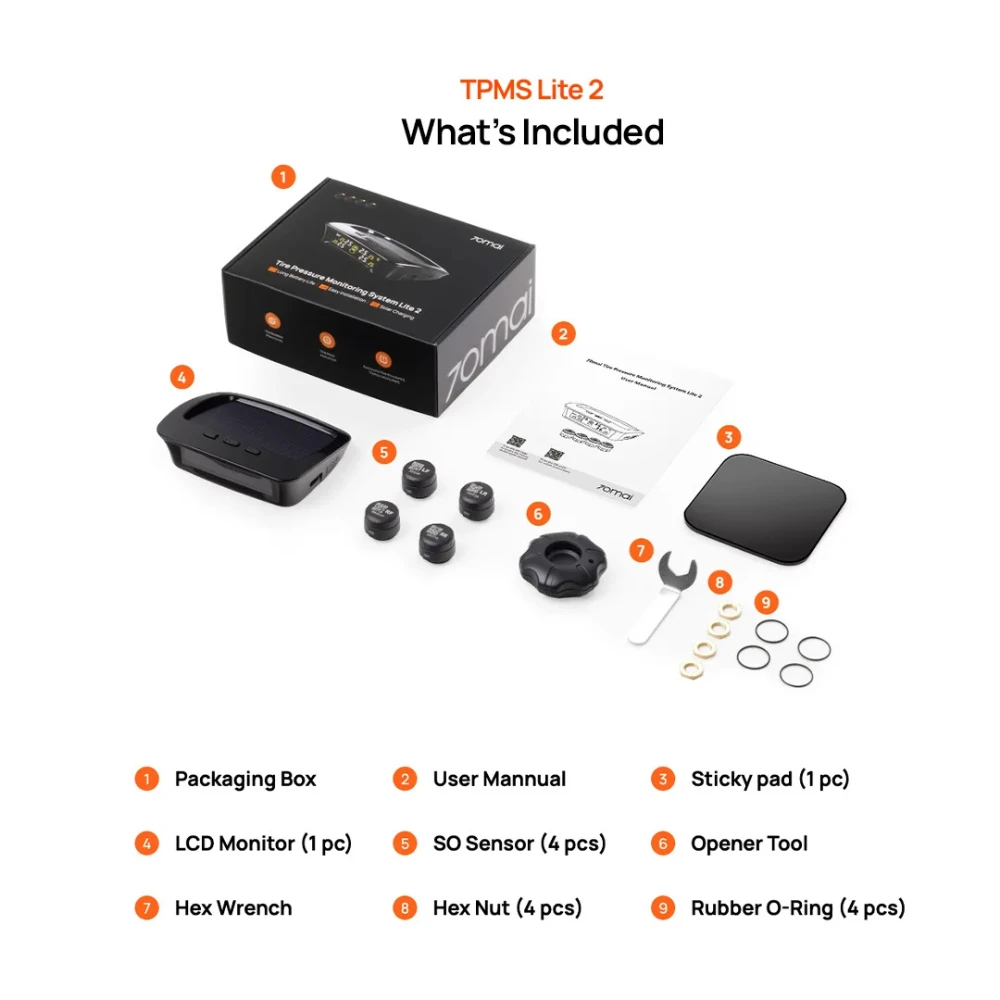

Package Contents

• 1 x 70mai TPMS Lite 2 Receiver Unit
• 4 x External Tire Pressure Sensors
• 4 x Anti-theft Hex Nuts
• 1 x Metal Wrench
• 1 x Micro-USB Power Cable
• 1 x User Manual
• 4 x Tire Valve Warning Stickers

Installation and Setup

Installing the 70mai T05 is a straightforward process that does not require tire removal or professional balancing. Follow these steps for optimal setup:

1. Power on the receiver unit using the USB cable to ensure it has initial charge.
2. Clean the tire valves to remove dirt or corrosion.
3. Screw the anti-theft hex nut onto the valve stem.
4. Attach the corresponding sensor (labeled FL, FR, RL, RR) to the valve and tighten it.
5. Use the provided wrench to tighten the hex nut against the sensor to prevent theft or accidental loosening.
6. The receiver will automatically detect the sensors within a few minutes of driving.

Safety and Usage Cautions

While the 70mai T05 is a robust safety tool, users should observe the following precautions: Ensure the sensors are tightened correctly to prevent air leaks. Periodically check the battery status of the sensors via the 70mai app; while they typically last 2 years, cold climates may reduce battery longevity. Do not attempt to submerge the receiver unit in water. This device is an assistive tool and does not replace regular manual tire inspections for tread wear or physical damage.

Frequently Asked Questions

Q: Can the sensors be stolen easily?
A: Each sensor comes with an anti-theft hex nut and a specific wrench. Once tightened against the sensor, it cannot be removed by hand, providing a high level of security against casual theft.

Q: Are the batteries in the sensors replaceable?
A: Yes, the external sensors use standard CR1632 button cell batteries which can be replaced by the user once they are depleted.

Q: Does the system work while the car is parked?
A: The sensors enter a sleep mode when the vehicle is stationary for a long period to save battery. They reactivate immediately once the vehicle begins to move or if there is a significant change in pressure.

Q: Is this compatible with trucks and trailers?
A: The 70mai T05 is designed for passenger vehicles (cars, SUVs, vans) with a maximum pressure threshold of 8.0 bar. It is not recommended for heavy-duty commercial trucks requiring higher pressure levels.
